I need acouple measurements Please

[abodybill]

I need the measurements for the two altenator spacers.

The one between the altenator and head and the spacer between the adjustment strap and waterpump.

This is for my 383 and I would think the 440 is the same not sure about the hemi?



[69hemibeep]

Can't help different animal :nachos:



[A31PKG]

Bill, Here's an exploded orientation view from the Hoffman site. No measurements, but thought it might help....

http://www.hoffmanswinnerscircle.com/pn987_explode.htm

I'll try and get some measurements tonight for you.



[A31PKG]

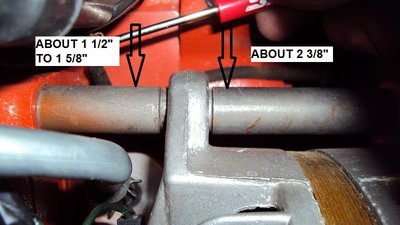

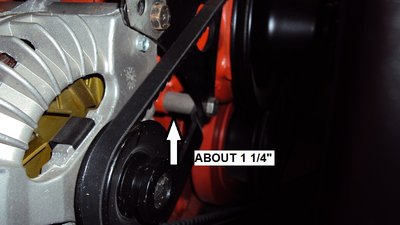

It was kinda hard to get in there... lengths are approximate.... here ya go....



[69hemibeep]

Bill with all your money just order a kit :acme: :jester:



[abodybill]

Bill with all your money just order a kit :acme: :jester:

I got 4 brand new kits and they got the spacers all mixed up between the SB/BB ones

Not me but the powder coater did as I had bought them before hoffmans started to coat them.

Perhaps you can tell me with all what $$$$$$$$.

I'm just a retired Ironworker nothing to do with Ma BIG $$$$$$$$$$$$$$$$$$$$$$$$ Bell :acme:



[abodybill]

It was kinda hard to get in there... lengths are approximate.... here ya go....

Craig,
I measured mine and after I looked at the Hoffmans you posted and I had the top/bottum switched and then I measured mine and came up with :

Top-Matched yours at 15/8"
Bottum-you 11/4"- me-11/8"

So I guess they are close and I will tell when I put the belt on and fire it up and they stay on :cheers:

Thanks for taking the time to measure



[abodybill]

It was kinda hard to get in there... lengths are approximate.... here ya go....

Craig,
I measured mine and after I looked at the Hoffmans you posted and I had the top/bottum switched and then I measured mine and came up with :

Top-Matched yours at 15/8"
Bottum-you 11/4"- me-11/8"
Center one -you 23/8 Me matched it but is that oine a tight fit?

So I guess they are close and I will tell when I put the belt on and fire it up and they stay on :cheers:

Thanks for taking the time to measure
